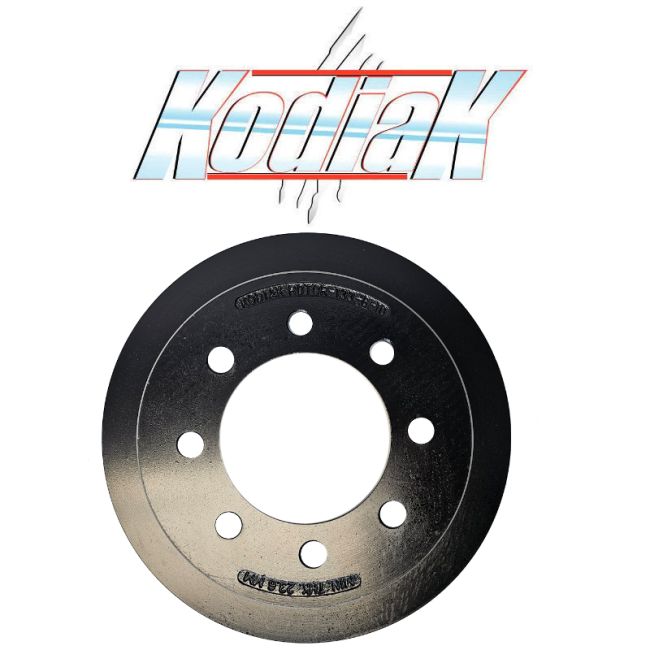

KODIAK 13" Vented 'Slip On' Style Rotor 9/16", E-COAT #070-RTR-133-8-9-E

Stock# 1561092
KODIAK 13" E-COAT Vented 'Slip On' style rotors for hubs with 9/16" studs. E-coating offers the best value of protection for over the road use and for fresh water marine (or limited salt water) applications (i.e., during a standard salt spray test, rust will begin forming between 250 and 350 hours). Hub not included.

$151.25

SKU

1561092

Details

KODIAK 13" E-COAT Vented 'Slip On' style rotors for hubs with 9/16" studs.
E-coating offers the best value of protection for over the road use and for fresh water marine (or limited salt water) applications (i.e., during a standard salt spray test, rust will begin forming between 250 and 350 hours). The 'Slip On' style Rotor is cast as a single unit and slips onto a standard 8 on 6.5" hub. Having the 'Slip On' style disc brake assembly allows you to replace a rotor with out having to remove the hub or bearings.

Note: Slip on Rotors will not work with caliper mounting bracket that is designed for use with integral rotor/hubs.

ROTOR DIAMETER: 13" VENTED
REPLACES DRUM DIAMETER: 13"
# OF STUDS: 8 @ 9/16" diameter
BOLT CIRCLE: 6.5" (15" & Larger Wheels)
AXLE RATING: 7 to 8K
WARRANTY: 3 Year
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS

Hubs (Not Included) require a minimum stud length of 1-1/4" for standard steel trailer rims, aluminum rims may require longer studs.
