MAT Galvanized 10" Vented Integral Rotor/Hub #77-3.5KI-RTR-102
Stock# 5470027

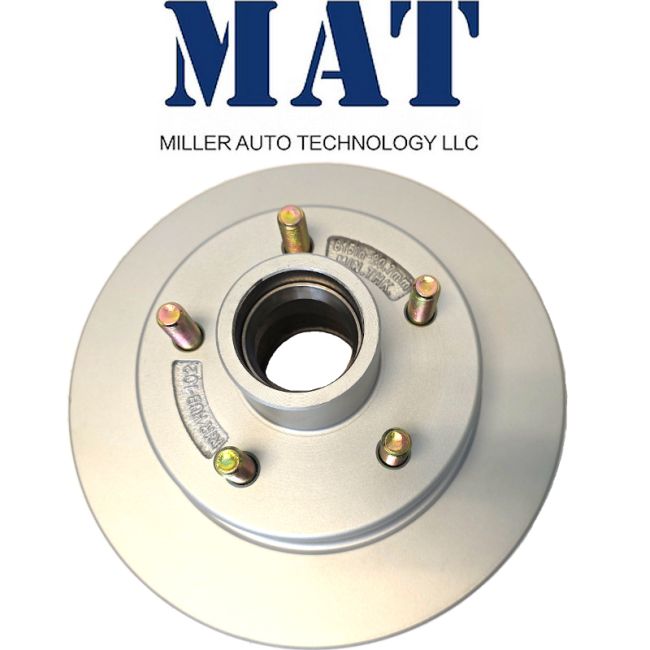

MAT 10" Galvanized Vented Integral Rotor/Hub trailer disc brake assembly. Galvanized Coating offers the best value of protection for salt water applications. Includes inner and outer races which are already installed. (Bearings, seal, lug nuts and dust cap sold separately)
MAT 10" Galvanized Vented Integral Rotor/Hub trailer disc brake assembly. Galvanized Coating offers the best value of protection for salt water applications. The INTEGRAL (One Piece) Hub & Rotor is cast as a single unit. Wheel studs are pressed into the rotor. Hub and rotor are balanced as one unit, which offers a smoother ride. Includes inner and outer races which are already installed. (Bearings, seal, lug nuts and dust cap sold separately)
Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then brakes.
EZ-LOADER 3.5k & 3k AXLE NOTE: Due to manufacturing variances this item must be retrofitted with Grease Seal # 5500103 to properly work with EZ-Loader Axles.
ROTOR DIAMETER: 10" VENTED
REPLACES DRUM DIAMETER: 10"
BEARING SIZE: 1-3/8" x 1-1/16" (Not included)
GREASE SEAL OD: 2.565" (Not included)
# OF STUDS: 5 @ 1/2" diameter
BOLT CIRCLE: 4-1/2" (13" & Larger Wheels)
AXLE RATING: 3500 lbs.
CAN BE USED WITH ELECTRIC-OVER-HYDRAULIC ACTUATORS
| Product Name | MAT Galvanized 10" Vented Integral Rotor/Hub #77-3.5KI-RTR-102 |
|---|
