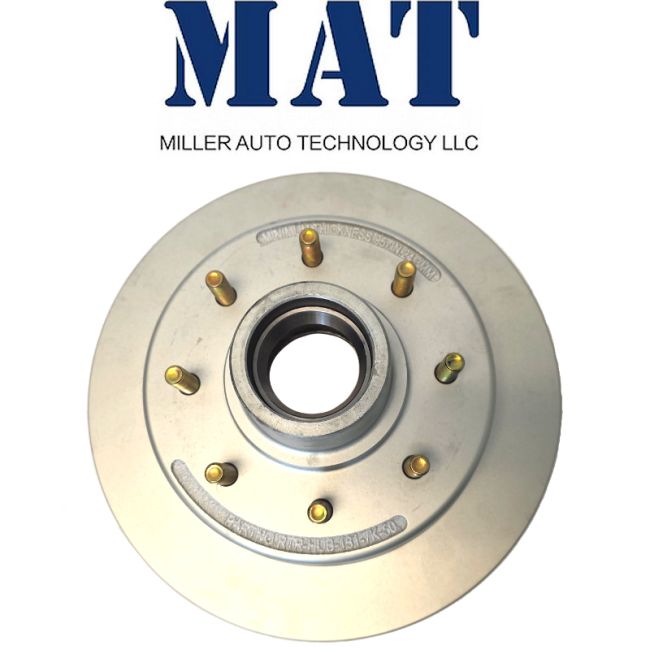

MAT Galvanized 13" Integral Disc Brake Rotor, 7k #77-7K-RTR

Stock# 5470030
MAT Galvanized 13" Integral Disc Brake Rotor fits 7,000 lbs. axles with MAT 7K disc brakes. The rotor is a traditional vented style with additional vent holes in the hub cavity to help dissipate heat. (Bearings, seal, lug nuts and dust cap sold separately)

$159.00

SKU

5470030

Details

MAT Galvanized 13" Integral Disc Brake Rotor fits 7,000 lb axles with MAT 7K disc brakes. Integral type Rotor/Hubs combine the hub and rotor into one unit and are balanced as one unit, which offers a smoother ride. Wheel studs are pressed into the rotor. The rotor is a traditional vented style with additional vent holes in the hub cavity to help dissipate heat. (Bearings, seal, lug nuts and dust cap sold separately)

Always use High-Temperature Marine Bearing Grease with disc brakes due to the higher operating temperatures then drum brakes.

ROTOR DIAMETER: 13" VENTED
REPLACES DRUM DIAMETER: 12"
# OF STUDS: 8 @ 1/2" diameter
BOLT CIRCLE: 6-1/2" (16" & Larger Wheels)
AXLE RATING: 7,000 lbs.
RACES INCLUDED: 25520-14276
