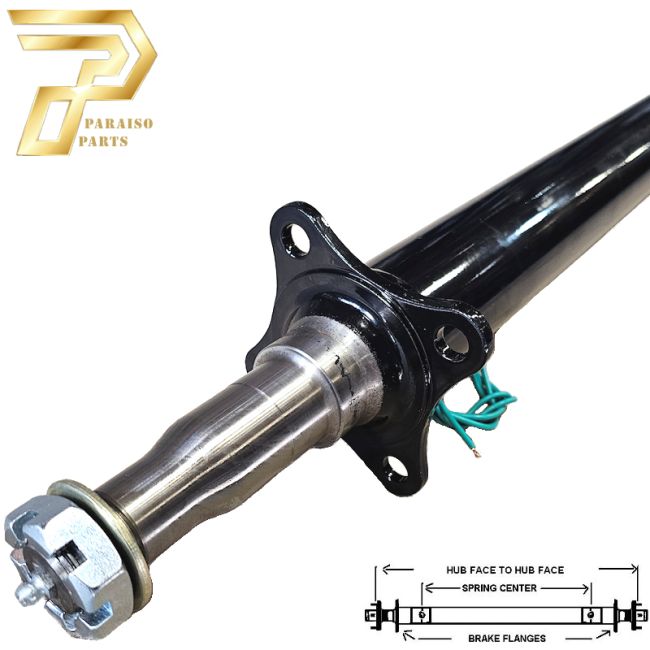

PARAISO 82" Round Tube Straight Trailer Axle (3,500 lb.) #BM12
Stock# 7160107
Track Length = 82" Overall = 86.75" Spring Center = 64"-72" Includes EZ-Lube Spindles. PARAISO 2-3/8" diameter round tube trailer axle includes spindle nuts, spindle washers, spring seats, and cotter pins.
CLICK FOR AXLE MEASURING INSTRUCTIONS
PARAISO 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design. All axles include spindle nuts, spring seats, cotter pins and spindle washers.
*Spring Seats will need to be welded to complete installation.
*OEM equivalent quality. Paraiso Axles replace Dexter, AL-KO, Hayes, and Lippert Axles.
CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (4-hole). Flange mounting holes are on 2-7/8" centers.
Axle Type: Round/Straight
Load Rating: 3,500 lbs.
Track Length: 82" Hub Face to Hub Face
Spring Center: 64" - 72"
Overall Length: 86.75"
Outside to Outside Brake Flange: 75-5/8"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles
| Product Name | PARAISO 82" Round Tube Straight Trailer Axle (3,500 lb.) #BM12 |
|---|
