PARAISO 94" Round Tube Straight Trailer Axle (3,500 lb.) #BM18
Stock# 7160113
Track Length = 94" Overall = 98.75" Spring Center = 76"-84" Includes EZ-Lube Spindles. PARAISO 2-3/8" diameter round tube trailer axle includes spindle nuts, spindle washers, spring seats, and cotter pins.
CLICK FOR AXLE MEASURING INSTRUCTIONS
PARAISO 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design. All axles include spindle nuts, spring seats, cotter pins and spindle washers.
*Spring Seats will need to be welded to complete installation.
*OEM equivalent quality. Paraiso Axles replace Dexter, AL-KO, Hayes, and Lippert Axles.

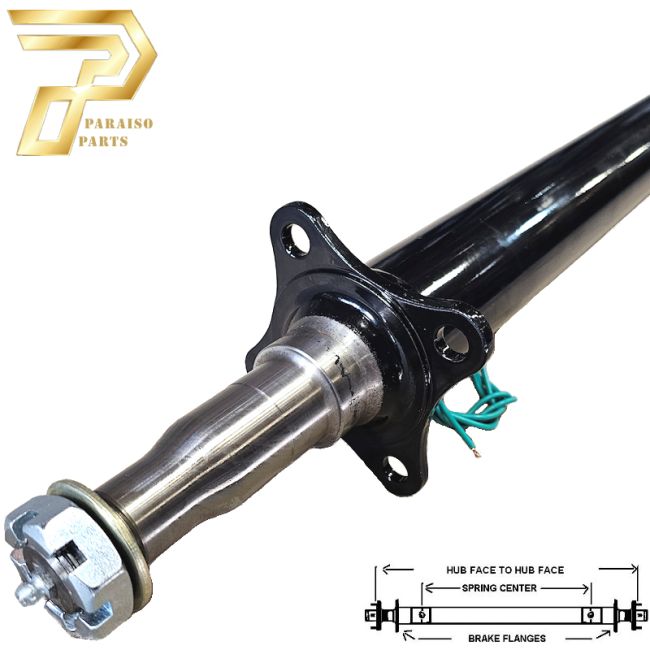

CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (4-hole). Flange mounting holes are on 2-7/8" centers.
Axle Type: Round/Straight
Load Rating: 3,500 lbs.
Track Length: 94" Hub Face to Hub Face
Spring Center: 76" - 84"
Overall Length: 98.75"
Outside to Outside Brake Flange: 87-5/8"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles
| Product Name | PARAISO 94" Round Tube Straight Trailer Axle (3,500 lb.) #BM18 |
|---|
