PJ TRAILER 89" Round Tube Straight Trailer Axle (3500 lb.) #9283092
Stock# 5432110

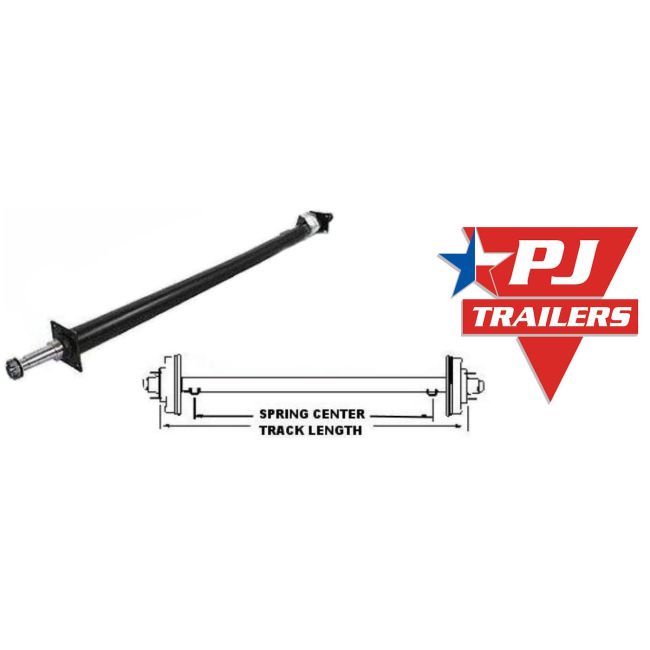

Track Length = 89" Overall = 93.75" Spring Center = 74" Underslung Includes EZ-Lube Spindles. PJ Trailer 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design and was made by Dexter to PJ specifications. All axles include spindle nuts, nut retainers, and D-washers.
CLICK FOR AXLE MEASURING INSTRUCTIONS
PJ Trailer 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design and was made by Dexter to PJ specifications. All axles include spindle nuts, nut retainers, and D-washers. CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (4-hole). Flange mounting holes are on 2-7/8" centers.
Axle Type: Round/Straight
Load Rating: 3500 lbs.
Track Length: 89" Hub Face to Hub Face
Spring Center: 74" Underslung
Overall Length: 93.75"
Outside to Outside Brake Flange: 82-3/4"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles
| Product Name | PJ TRAILER 89" Round Tube Straight Trailer Axle (3500 lb.) #9283092 |
|---|
