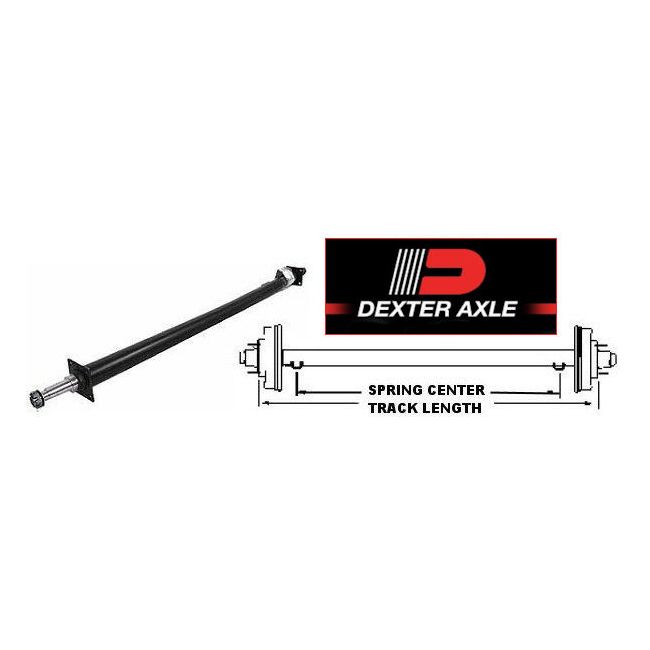

PJ TRAILER 95" Round Tube Straight Trailer Axle (3,500 lb.) #9283099
Stock# 5432111
Track Length = 95" Overall = 99.75" Spring Center = 80" Underslung Includes EZ-Lube Spindles. DEXTER 2-3/8" diameter round tube trailer axle includes spindle nuts, nut retainers, D-washers, and spring seats.
CLICK FOR AXLE MEASURING INSTRUCTIONS
PJ Trailer 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design and was made by Dexter to PJ specifications. All axles include spindle nuts, nut retainers, and D-washers. CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-attached brake mounting flanges (4-hole). Flange mounting holes are on 2-7/8" centers.
Axle Type: Round/Straight
Load Rating: 3,500 lbs.
Track Length: 95" Hub Face to Hub Face
Spring Center: 80", Under-slung seat placement
Overall Length: 99.75"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles
Brake Flange (Outside): 88"
| Product Name | PJ TRAILER 95" Round Tube Straight Trailer Axle (3,500 lb.) #9283099 |
|---|
