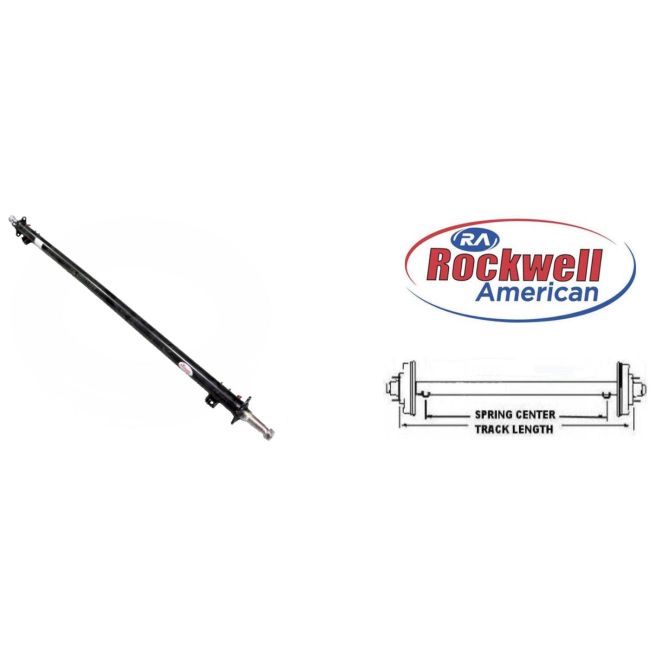

ROCKWELL 73" Round Tube Straight Trailer Axle (3,500 lb.) #35730580
Stock# 7108643
Track Length = 73" Overall = 77.75" Spring Center = 58" Includes EZ-Lube Spindles
Rockwell 2-3/8" diameter round tube trailer axle includes spindle nuts, nut retainers, and D-washers.
CLICK FOR AXLE MEASURING INSTRUCTIONS
Rockwell 2-3/8" diameter round tube trailer axle has a black painted finish and cambered design. All axles include spindle nuts, nut retainers, and D-washers. The spring seats are pre-welded at 58". CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. This axle includes pre-welded brake mounting flanges (4-hole). Flange mounting holes are on 2-7/8" centers.
Axle Type: Round/Straight
Load Rating: 3,500 lbs.
Track Length: 73" Hub Face to Hub Face
Spring Center: 58"
Overall Length: 77.75"
Spindle Size: 1-3/8" x 1-1/16" EZ-Lube Spindles
Brake Flange (Outside): 67-1/4"
| Product Name | ROCKWELL 73" Round Tube Straight Trailer Axle (3,500 lb.) #35730580 |
|---|
