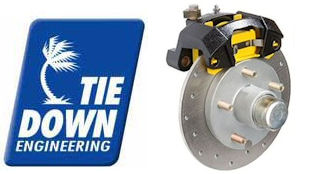

TIE DOWN ENGINEERING Trailer Disc Brakes

Stock# 7125173
Replacement G-5 caliper assembly and conversion mounting bracket for 12" G-4 Tie Down Engineering Trailer Disc Brake Kits. Single piston aluminum caliper, patented bi-metal aluminum/stainless piston and oil impregnated bronze bushings provide excellent corrosion protection.
SUPPLIES LIMITED

Stock# 7125274
Tie Down Engineering G5 11.75" (6-Lug) 'Integral Style' Stainless Steel Disc rotor fits standard 6,000 lb trailer axles with 1-3/8 inch by 1-1/16 inch bearing combinations. The integrated hub and rotor has a 6 on 5.5 inch bolt pattern and accommodates 3.37 inch outer diameter trailer grease seals.
SUPPLIES LIMITED

Stock# 7125035
Tie Down Engineering Eliminator 9.6" (5-Lug) 'Integral Style' GALVX Coated Vented Disc Brake assembly. Includes vented rotor/hub with mounting brackets, hardware, aluminum caliper assembly and complete installation instructions.

Stock# 7125237
Tie Down Engineering 10" (5-Lug) 'Cap Style' GALVX Coated Vented Disc Brake kit. Includes GALVX finish Vented slip on rotor, GalvX mounting brackets w/hardware, aluminum caliper assembly with SS slider pins and complete installation instructions. 5-Lug hub kit NOT included.

Stock# 7125104
Tie Down Engineering 10" (5-Lug) 'Cap Style' GALVX Coated Vented Disc Brake kit with Vortex Hub. Includes GALVX finish Vented slip on rotor, GALVX mounting brackets w/hardware, aluminum caliper assembly with SS slider pins, GALVX Vortex Hub, and complete installation instructions.

Stock# 7125042
Tie Down Engineering Eliminator 12" (6-Lug) 'Integral Style' GALVX Coated Vented Disc Brake assembly. Includes vented rotor/hub with mounting brackets, hardware, aluminum caliper assembly and complete installation instructions.

Stock# 7125238
Tie Down Engineering 12" (6-Lug) 'Cap Style' GALVX Coated Vented Disc Brake kit. Includes GALVX finish Vented slip on rotor,  GalvX mounting brackets w/hardware, aluminum caliper assembly with SS slider pins and complete installation instructions. 6-Lug hub kit NOT included.

Stock# 7125105
Tie Down Engineering 12" (6-Lug) 'Cap Style' GALVX Coated Vented Disc Brake kit with Vortex Hub. Includes GALVX finish Vented slip on rotor, GALVX mounting brackets w/hardware, aluminum caliper assembly with SS slider pins, GALVX Vortex Hubs, and complete installation instructions.

Stock# 7125041
Includes: (2) Tie Down Engineering 9.6" GalvX coated Vented Trailer Disc Brake assembly, Model 66 Disc Actuator with built in Electric Reverse BackFlow Solenoid & 20' S.A. Flexible Brake Line Kit.

Stock# 7125044
Replacement caliper assembly for 9.6", 10", & 12" Tie Down Engineering Vented Trailer Disc Brake Kits. Aluminum calipers have a Black E-Coat finish to provide double corrosion protection. Brake pads are included.

Stock# 7125273
Tie Down Engineering G5 9.6" (5-Lug) 'Integral Style' Stainless Steel Disc rotor. The integral rotor and hub has a 5 on 4.5 inch bolt pattern, and fits standard 3,500 lb trailer axles with 1-3/8 inch by 1-1/16 inch bearing combinations.
SUPPLIES LIMITED

Stock# 7125271
Tie Down Engineering Eliminator 9.6" (5-Lug) 'Integral Style' GALVX Coated Vented Disc Brake assembly. Includes vented rotor/hub only.

Stock# 7125272
Tie Down Engineering Eliminator 12" (6-Lug) 'Integral Style' GALVX Coated Vented Disc Rotor. Includes vented rotor/hub with pre-greased bearings. Caliper (sold separately).

Stock# 7125019
The Model DX6.6 Disc Brake Actuator has an all aluminum wide mouth master cylinder which allows you to easily add brake fluid, a stronger low profile latch handle, a reversing solenoid and a quick lock 2" coupler. Rated Capacity: 6,600 lb

Stock# 7125036
Rated Capacity: 7,500 lbs.The NEW AND IMPROVED Model 750E Disc Brake Actuator has an all aluminum wide mouth master cylinder which allows you to easily add brake fluid, a stronger low profile latch handle and a quick lock 2" coupler. Note: The Model DX7.5 Disc Brake Actuator (7,500 lbs Capacity) is the manufacturers upgraded direct replacement for the Model 750E Surge Brake Actuator (7,500 lbs Capacity) and Model 70 Surge Brake Actuator (7,000 lbs. Capacity).

Stock# 7125053
Rated Capacity: 8500 lbs. The NEW AND IMPROVED Model 850 Disc Brake Actuator has an all aluminum wide mouth master cylinder which allows you to easily add brake fluid, a stronger low profile latch handle and a quick lock 2" coupler.

Stock# 7125175
The NEW Model 165 "RAPTOR" Disc Brake Actuator has a stronger low profile latch handle and a quick lock 2-5/16" coupler. Maximum actuator capacity is 16,500 lbs. Gross load: 1,650 lbs.
Includes a pre-installed reverse lock-out cylinder.

Stock# 7125246
Tie Down Engineering trailer disc brake reversing solenoid. A reverse lockout solenoid should be installed at the actuator before installation of disc brakes.

Stock# 7125020
Tie Down Engineering trailer disc brake reversing solenoid. A reverse lockout solenoid should be installed at the actuator before installation of disc brakes.

Stock# 7125131
Tie Down Engineering 'Backflow' trailer disc brake solenoid. A reverse lockout solenoid should be installed at the actuator before installation of disc brakes. The Backflow design allows for changing to reverse while vehicle is stopped in a down hill position.

Stock# 7125180
Complete disc brake master cylinder replacement kit includes: Aluminum Master Cylinder, Push Rods, Breakaway Spring, Gasket, Baffle, Rollers, Pins, Cap, Hose, Hose Clamps and Fitting.
Note: For use with Tie Down Engineering model LP70 Button Latch Disc Brake Actuators (Disc Brakes Only)

Stock# 7125178
Complete disc brake master cylinder replacement kit includes: Aluminum Master Cylinder, Push Rods, Breakaway Spring, Gasket, Baffle, Rollers, Pins and cap.
Note: For use with Tie Down Engineering models 66, 70 and 80 (Disc Brakes Only)

Stock# 7125181
Complete drum brake master cylinder replacement kit includes: Aluminum Master Cylinder, Push Rods, Breakaway Spring, Gasket, Baffle, Rollers, Pins and Cap.
Note: For use with TIEDOWN ENGINEERING model LP70 Button Latch Drum Brake Actuators (Drum Brakes Only)

Stock# 7125093
TIEDOWN ENGINEERING model 66 replacement master cylinder cap with gasket. Also fits models 70 & 80. Threads are 1.235" o.d.

Stock# 7125045
TIE DOWN ENGINEERING replacement safety pin with lanyard fits the model 66, 70 and 80 actuators.

Stock# 7125083
TIE DOWN ENGINEERING replacement breakaway cable assembly with button stop fits the model 66, 70, and 80.

Stock# 7125029
Tie Down Engineering 3/16" x 24" flexible brake lines with brass couplings, required when using steel brake lines.

Stock# 7125043
Tie Down Engineering replacement pad set for two 9.6", 10", or 12" Eliminator Series Vented Rotor Disc Brake calipers. Galv-X coated backing plates.

Stock# 7125084
Tie Down Engineering replacement stainless steel brake caliper bleeder valve. Sold as each.
SUPPLIES LIMITED

Stock# 7125046
Tie Down Engineering replacement S.S. slider pin for 9.6", 10", or 12" Vented Rotor Trailer Disc Brake calipers.

Stock# 7125030
Replacement stud for 9.2" x 5-lug Tie Down Engineering S.S. Trailer Disc Brake assembly.
Grade 8 wheel stud: overall length with out cap 2.075", thread length 1.31", insert length .714", knurl diameter .542"

Stock# 7125080
Replacement stud for 1" & 1-1/16" bearing Tie Down Engineering idler hubs. Knurl Diameter: 0.545"
