3500 lb. Round Tube Trailer Axles

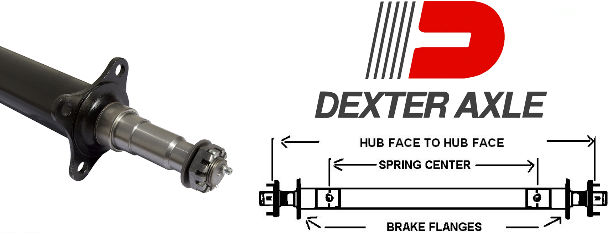

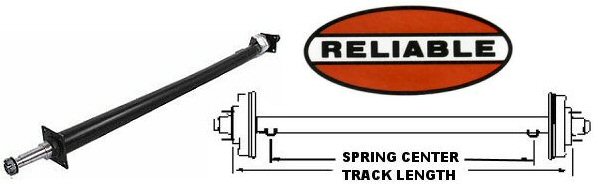

2-3/8" Diameter x 3/16" wall round tube, black painted finish, cambered design trailer axle.
All axles include spindle nuts, washers, cotter pins, and spring seats (seats need to be welded to complete installation). 4-Hole Brake flange is attached. Spindle size is 1-3/8" x 1-1/16"
CAMBER: Axles are cambered or 'road set' so there is a bow until weight is put on the axle. All cambered axles should be mounted with the center bow up. Note: Track Length is the distance from hub face to hub face.

Trailer Parts Tech Tip: HOW TO MEASURE & SELECT THE PROPER AXLE

Quantity	Description		Price
		60" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500016 Track Length = 60" Overall = 64.75" Spring Center = 42"-50" Universal application trailer axle, RELIABLE TOOL #SP-3500-205	$117.75
		64" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500017 Track Length = 64" Overall = 68.75" Spring Center = 46"-54" Universal application trailer axle, RELIABLE TOOL #SP-3500-024	$119.35
		68" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500018 Track Length = 68" Overall = 72.75" Spring Center = 50"-58" Universal application trailer axle, RELIABLE TOOL #SP-3500-583	$121.00
		70" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500019 Track Length = 70" Overall = 74.75" Spring Center = 52"-60" Universal application trailer axle, RELIABLE TOOL #SP-3500-584	$122.60
		72" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500020 Track Length = 72" Overall = 76.75" Spring Center = 54"-62" Universal application trailer axle, RELIABLE TOOL #SP-3500-206	$124.25
		74" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500021 Track Length = 74" Overall = 78.75" Spring Center = 56"-64" Universal application trailer axle, RELIABLE TOOL #SP-3500-586	$125.85
		76" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500022 Track Length = 76" Overall = 80.75" Spring Center = 58"-66" Universal application trailer axle, RELIABLE TOOL #SP-3500-033	$127.50
		78" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500023 Track Length = 78" Overall = 82.75" Spring Center = 60"-68" Universal application trailer axle, RELIABLE TOOL #SP-3500-588	$129.15
		80" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500024 Track Length = 80" Overall = 84.75" Spring Center = 62"-70" Universal application trailer axle, RELIABLE TOOL #SP-3500-243	$130.80
		82" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500025 Track Length = 82" Overall = 86.75" Spring Center = 64"-72" Universal application trailer axle, RELIABLE TOOL #SP-3500-542	$132.45
		84" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500026 Track Length = 84" Overall = 88.75" Spring Center = 66"-74" Universal application trailer axle, RELIABLE TOOL #SP-3500-228	$134.10
		86" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500027 Track Length = 86" Overall = 90.75" Spring Center = 68"-76" Universal application trailer axle, RELIABLE TOOL #SP-3500-040	$135.75
		88" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500028 Track Length = 88" Overall = 92.75" Spring Center = 70"-78" Universal application trailer axle, RELIABLE TOOL #SP-3500-207	$137.40
		90" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500029 Track Length = 90" Overall = 94.75" Spring Center = 72"-80" Universal application trailer axle, RELIABLE TOOL #SP-3500-594	$139.50
		92" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500107 Track Length = 92" Overall = 96.75" Spring Center = 74"-82" Universal application trailer axle, RELIABLE TOOL #SP-3500-1050	$141.60
		94" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500108 Track Length = 94" Overall = 98.75" Spring Center = 76"-84" Universal application trailer axle, RELIABLE TOOL #SP-3500-1051	$143.70
		96" Round Tube Straight Trailer Axle (3500 lb.) Stock# 5500109 Track Length = 96" Overall = 100.75" Spring Center = 78"-86" Universal application trailer axle, RELIABLE TOOL #SP-3500-1052	$145.80
